Before Mechanical Cooling: Designing for India’s Climate Zones

India’s climates do not ask architecture the same question. Across Jaipur, Hyderabad and Nagpur, three institutional and workplace projects reveal why comfort must begin with form, section and material, long before it becomes the responsibility of a machine.

Mechanical cooling has altered architecture more profoundly than is generally acknowledged. It has enabled extraordinary freedoms of programme, density and enclosure. It has also encouraged the assumption that comfort can be introduced after a building has been designed, supplied through ducts and equipment to compensate for decisions already fixed in concrete and glass.

In India, this assumption is particularly consequential. The country does not possess a singular climate, but a field of sharply differentiated conditions. Jaipur’s intense solar exposure and desert diurnal range, Hyderabad’s movement between hot-dry and humid periods, and Nagpur’s composite extremes cannot be met by one universal environmental formula. Each requires a different relationship between mass and air, enclosure and aperture, landscape and occupation.

To design responsibly within these conditions is not to reject mechanical cooling. Contemporary institutions and workplaces carry internal loads and expectations that make such a rejection simplistic. The more serious architectural question is one of sequence: what can the building accomplish before the equipment is switched on?

At Pearl Academy in Jaipur, the answer lies in shade, thermal mass and evaporation. At Wipro’s campus in Hyderabad, it emerges through porosity, air movement and the construction of an inhabitable microclimate. At the Infosys Campus in Nagpur, geometry, solar control and a high-performance envelope reduce the work demanded of an efficient cooling system.

These are not three variations on an environmental checklist. They are three distinct acts of climatic interpretation.

Climate Is Not a Backdrop

For much of architectural history, climate was not a technical layer applied to a completed design. It was among the forces from which form originated.

Courtyards were proportioned to receive winter sun and exclude its summer intensity. Walls acquired depth because depth delayed heat. Openings were calibrated not only for view but for the movement of air, the direction of rain and the angle of light. Streets narrowed, roofs projected, screens filtered and thresholds multiplied. Architecture moderated the passage between environmental conditions rather than drawing an absolute line between inside and outside.

Mechanical systems weakened this reciprocity. A sealed, extensively glazed office could be reproduced across cities because its internal climate was expected to be manufactured. Regional difference became an engineering load.

The environmental cost of this model is familiar. Its architectural cost is less frequently discussed. When a building is indifferent to climate, it also loses one of its most meaningful sources of specificity. It becomes less closely related to its latitude, material culture, patterns of occupation and inherited spatial intelligence.

Climatic design should not, however, be confused with the literal revival of historical forms. A jaali, a courtyard or a stepwell is not inherently sustainable merely because it belongs to a traditional vocabulary. Its value depends upon what it does in the contemporary building: how it alters radiation, temperature, airflow, daylight or patterns of use.

The task is not to imitate the past. It is to recover the precision with which earlier architecture read its environment.

In Jaipur, the Building Makes Its Own Shade

Completed in 2008, Pearl Academy occupies three acres within the industrial landscape of Kukas, on the outskirts of Jaipur. Its compact, introverted form responds at once to an unremarkable immediate context and to the severity of Rajasthan’s hot-dry climate.

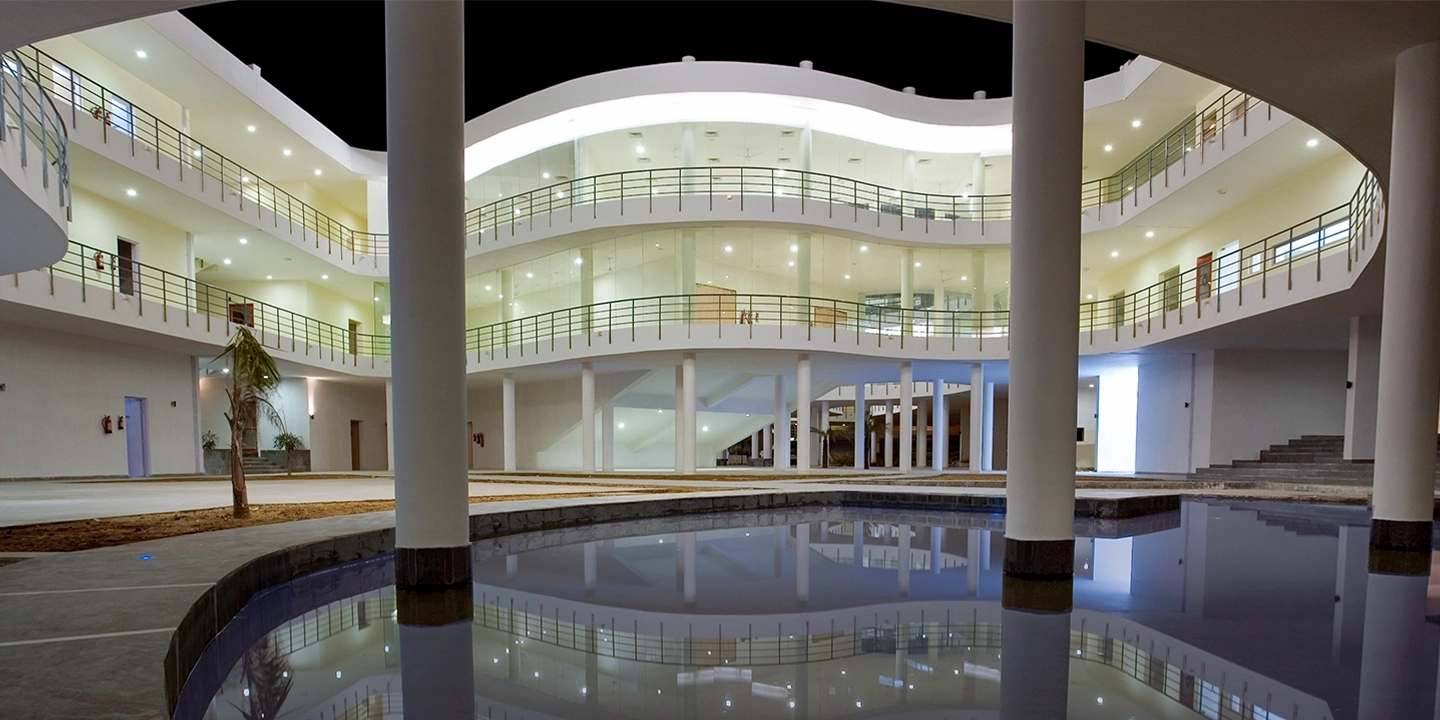

The building’s outward restraint conceals a far more fluid interior. Curving courtyards and shaded circulation spaces create a continuous spatial field in which learning, encounter and movement extend beyond enclosed classrooms. The contrast is deliberate: an opaque, protective perimeter surrounds an inhabited internal world.

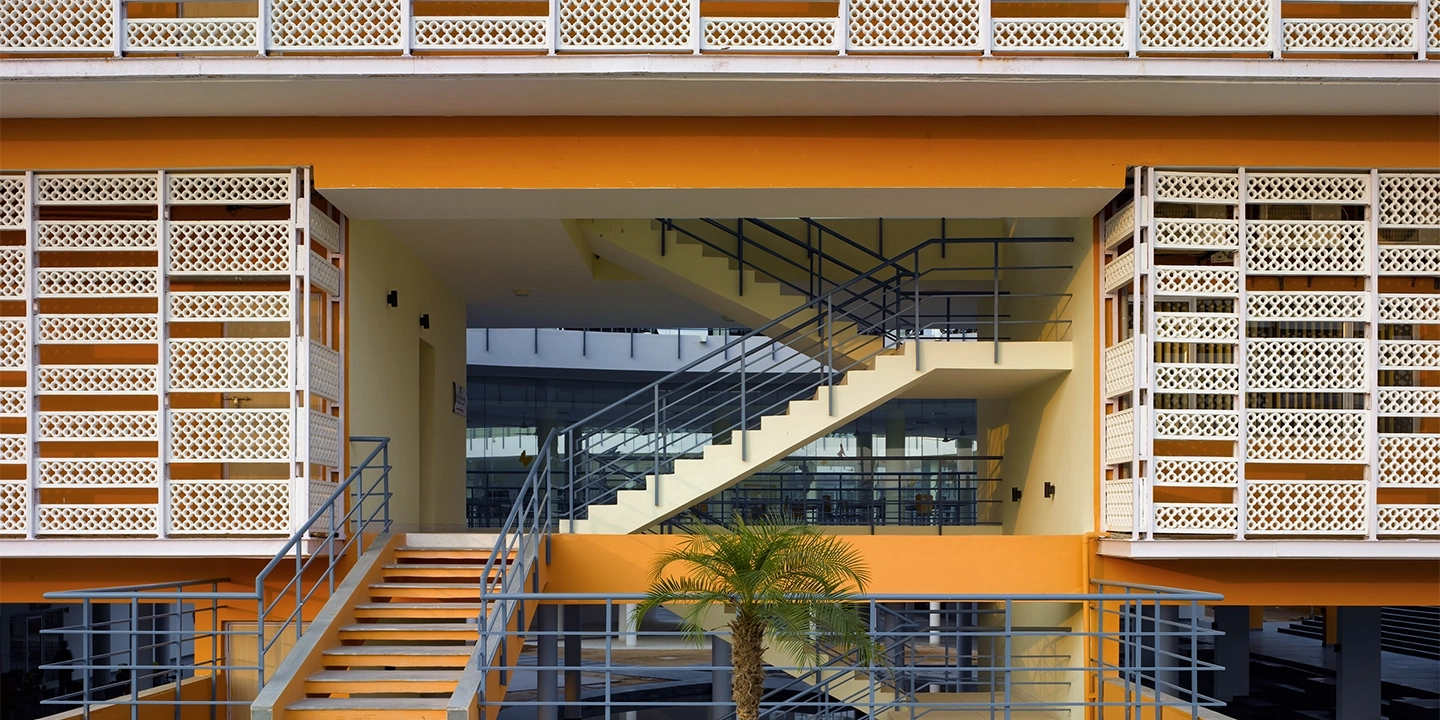

The first environmental defence is a double skin derived from the Rajasthani jaali. Positioned approximately four feet from the inner envelope, the perforated outer layer intercepts direct solar radiation before it reaches the building proper. Its density varies in response to orientation, informed by shadow analysis rather than applied as a uniform decorative pattern.

This separation is critical. The jaali is not simply a façade image. The interstitial depth creates a thermal buffer while admitting diffused light and air. Solar intensity is converted into shadow; exposure becomes filtration. Privacy, daylight and thermal moderation are achieved through a single architectural element.

Above, the roof is insulated using inverted earthen pots. The voids created by the matkas, supplemented by sand and fragments of brick, reduce heat transmission through the surface most exposed to the desert sun. It is a modest constructional technique, but one that embodies a larger principle: environmental performance need not always depend upon technologically intensive assemblies. Intelligence may reside in section, material availability and trapped air.

The project’s most consequential climatic space lies beneath the building.

Pearl Academy is raised above a scooped, earth-banked underbelly whose logic is drawn from the baoli. At a depth of approximately three metres, the ground temperature in the region approaches its annual average of about 25°C. The architecture makes this thermal stability available to everyday occupation. Recycled water from the campus sewage-treatment system feeds water bodies that support evaporative cooling, while the surrounding earth provides thermal inertia.

The result is neither a conventional basement nor an ornamental recollection of the stepwell. It is a large recreation, exhibition and performance landscape, also accommodating the cafeteria and fashion shows. Activities that might ordinarily have required another enclosed, conditioned floor are placed within an environment moderated by shade, earth and water.

Project studies record temperatures of approximately 27°C within this space even when external temperatures rise to around 47°C. The significance of this twenty-degree differential lies not only in energy saved. It lies in the transformation of programme. Passive design does not merely reduce the consumption of a predetermined building; it changes what the building needs to be.

Pearl Academy therefore offers a more demanding understanding of contextual architecture. Its cultural references are credible because they remain performative. The jaali filters. The baoli cools. The courtyard shades. The matka insulates. History is not reproduced as an image, but re-entered as environmental knowledge.

In Hyderabad, the Workplace Steps Outside

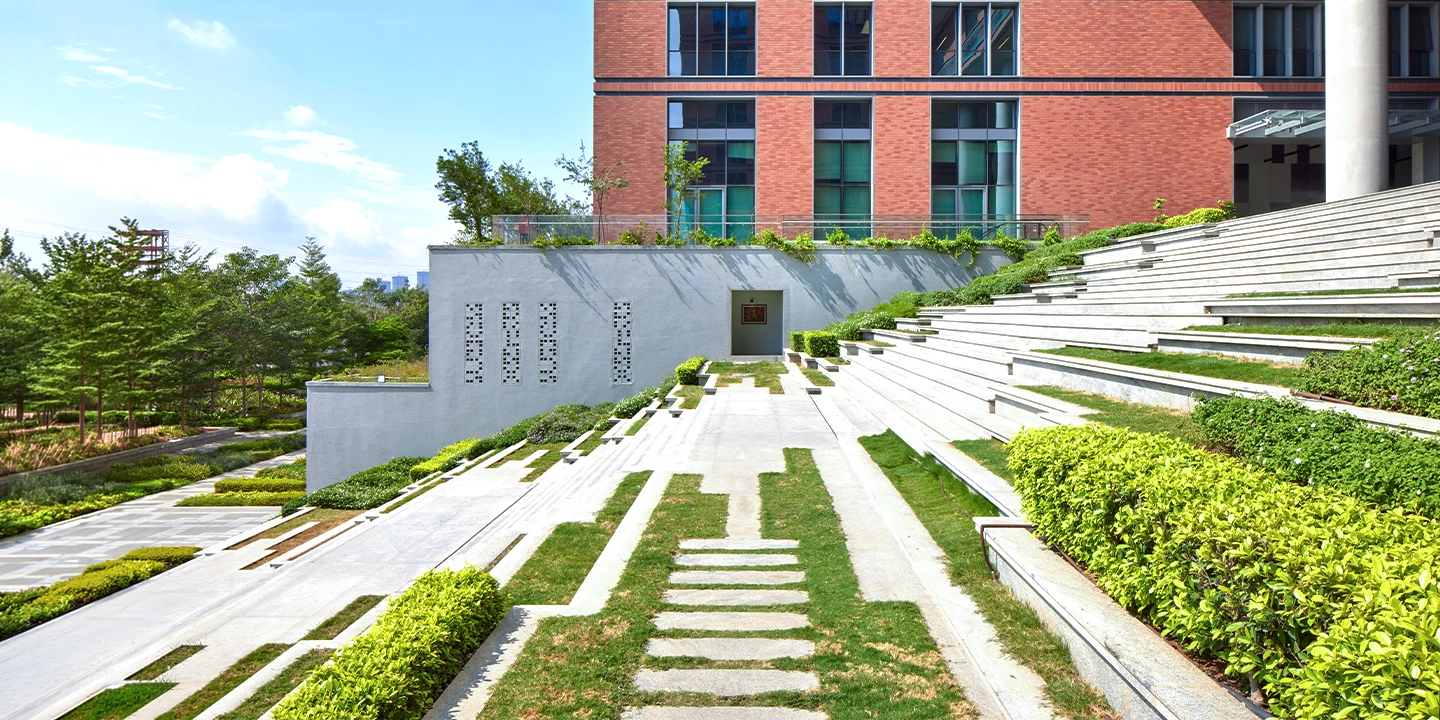

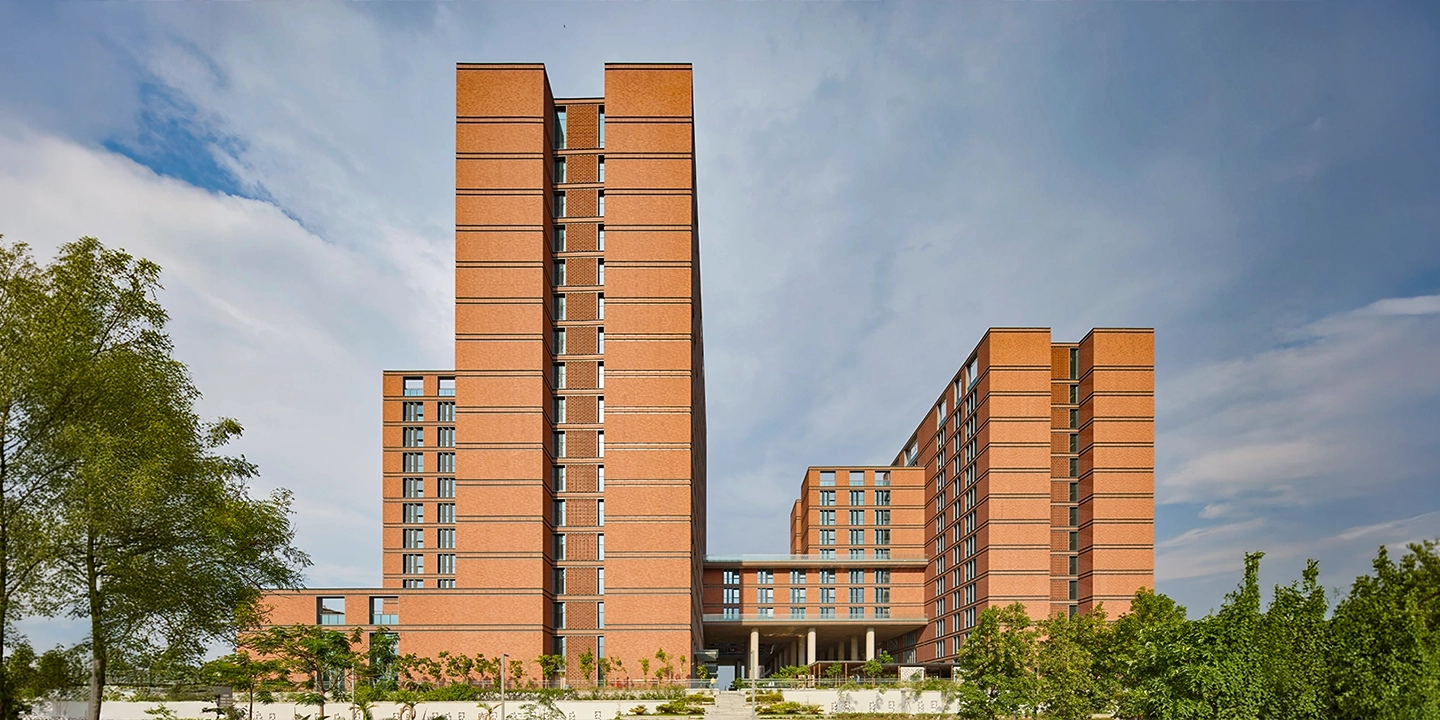

The Wipro campus in Gopanpally addresses another scale and another climatic problem. Its four new towers accommodate approximately 11,000 employees across a 37.91-acre site within a larger 101-acre masterplan. The project’s scale could readily have produced an internalised corporate enclave, dependent upon conditioned corridors and deep, sealed floor plates.

Instead, its organising idea is the construction of a porous urban field.

Hyderabad is identified in the project fact file as having a composite climate. It experiences periods in which evaporative cooling is effective and others in which humidity makes air movement the more important source of comfort. This seasonal variation resists a singular passive response. The architecture must be capable of changing emphasis across the year.

Wind and solar studies informed the disposition of four blocks, ranging from nine to fourteen storeys. Their north-south orientation reduces exposure to low eastern and western sun, while open east-west edges admit prevailing winds. The masses are staggered and rotated around a principal courtyard, creating a series of smaller, “disintegrated” courts, terraces and shaded interstitial spaces.

This fragmented morphology performs several tasks at once. It reduces the apparent scale of the complex, increases self-shading, brings daylight deeper into relatively narrow floor plates and creates paths through which air can move. Terraces extend the workplace beyond the façade, allowing occupation to take place within a range of environmental conditions rather than within a binary of conditioned interior and exposed exterior.

The courtyard is central to this proposition. It operates as an arrival space, pedestrian commons and climatic chamber. Water features, cascades and curtains cool air during the hot-dry months through evaporation. In more humid periods, elevated air speeds, natural ventilation and ceiling fans support physiological cooling, increasing heat loss from the body even when evaporation from water becomes less effective.

Landscape is therefore not an amenity surrounding the architecture. It is part of the environmental system. Vegetation contributes shade and evapotranspiration; stepped ground moderates and directs breezes; water is placed where moving air can carry its cooling effect into occupied zones. Modelling undertaken for the project indicates that the combined use of shade, air movement, thermal mass and mist cooling can create comfortable outdoor and semi-outdoor conditions for 97 per cent of occupied hours. Solar control within the courts nearly doubles the number of comfort hours.

The envelope reinforces this climatic hierarchy. Approximately 70 per cent of it is wall and 30 per cent glazing. Exposed brick cavity walls draw upon the thermal logic of Hyderabad’s traditional deodis, while fins, overhangs and concrete projections control direct sun and glare. Larger openings are turned towards courtyards and landscape, where the external conditions have already been moderated.

Mechanical systems remain part of the project. Radiant cooling, underfloor air distribution and fans are combined with passive measures, with design analysis indicating a 50 per cent reduction in cooling energy and a projected Energy Performance Index of 65 kWh per square metre per year. Yet these figures are best understood as the consequence of an architectural order established earlier. Orientation, porosity, shading and envelope design first reduce the problem. Equipment addresses the residual load.

At Wipro, this sequence also changes workplace culture. The food court, parts of the library, terraces and communal spaces can inhabit the climatic middle ground between inside and outside. Environmental design becomes social infrastructure. Comfort is produced not by sealing occupants away from Hyderabad, but by making carefully modified versions of its climate inhabitable.

In Nagpur, Geometry Learns the Sun

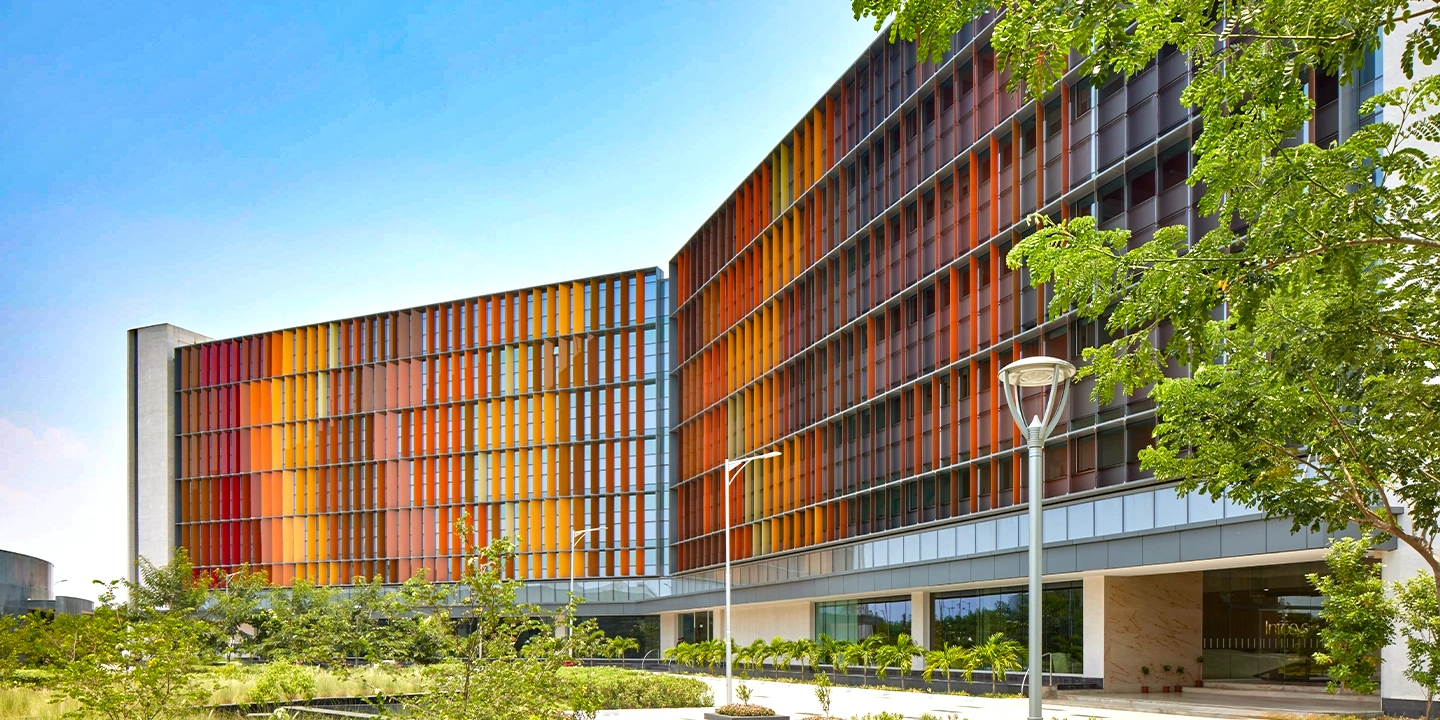

If Pearl Academy begins with an enclosing screen and Wipro with a field of courtyards, the Infosys Campus in Nagpur begins with geometry.

The first phase occupies 33 acres within a 142-acre site in the MIHAN Special Economic Zone and accommodates more than 2,000 employees. Nagpur’s composite climate brings intense summer heat, seasonal humidity and cooler winter periods. The building must negotiate conditions that vary substantially across both day and year.

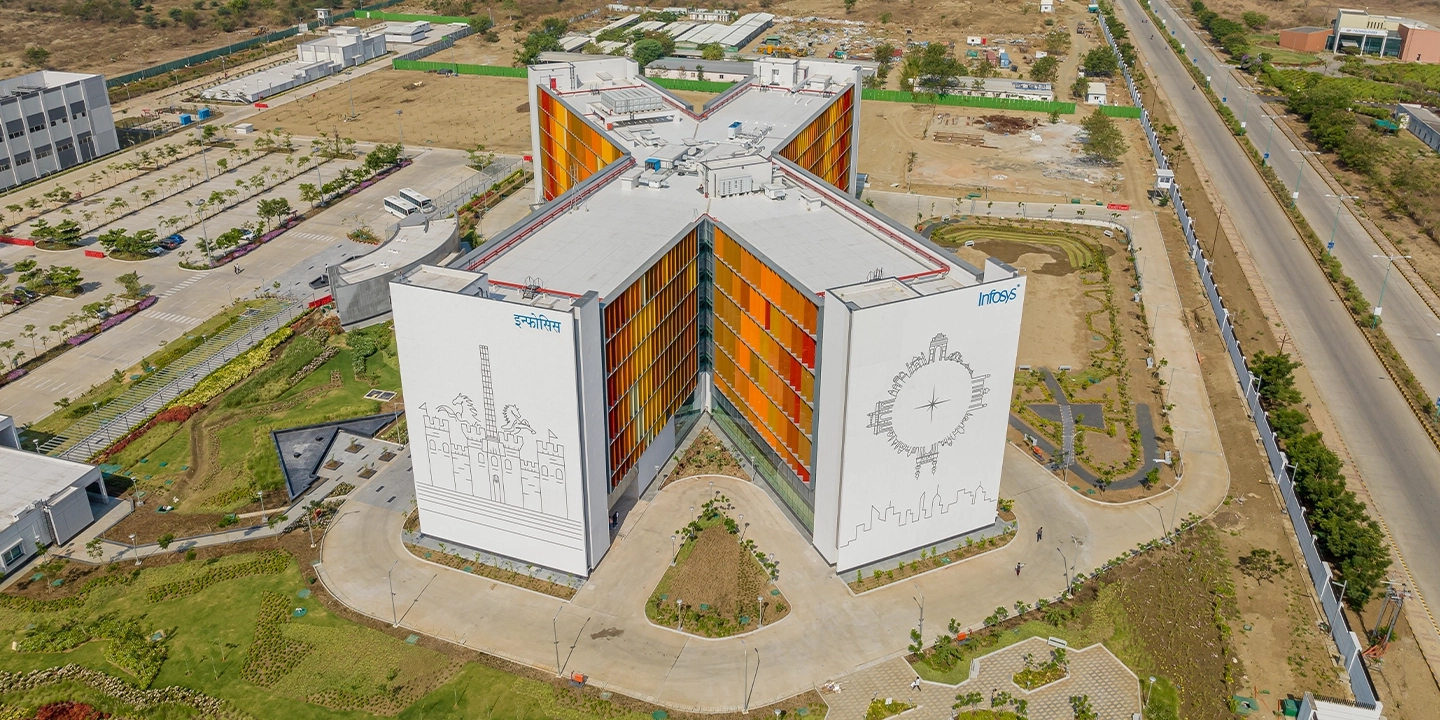

Its X-shaped plan is rotated 22.5 degrees in relation to the Tropic of Cancer. This is not a gesture of abstract formalism. The rotation aligns the building more precisely with solar geography, while the four wings distribute large workplace requirements into floor plates limited to 18 metres in depth.

That dimensional restraint has far-reaching effects. Ninety per cent of workspaces meet the project’s daylight criterion, receiving at least 100 lux for 90 per cent of occupied hours. Artificial lighting demand is reduced, but so too is one of its secondary consequences: internal heat gain. Daylight, frequently presented as an unqualified good, is admitted here only after glare and radiation have been controlled.

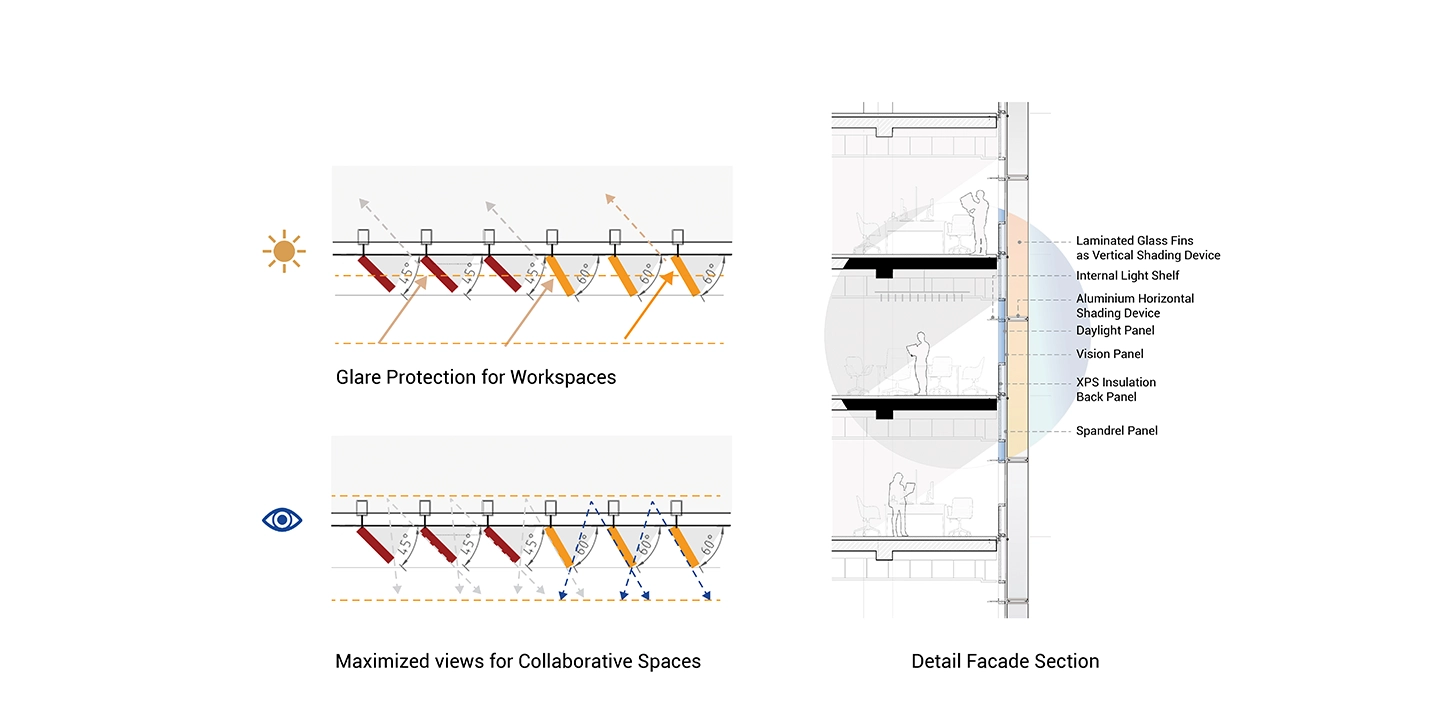

The façade performs this calibration through external vertical fins and horizontal light shelves. The fins vary in angle according to orientation, intercepting direct sun while preserving diffuse illumination. Their pattern draws upon the seven swaras of Indian classical music and the striations of a tiger’s skin, but, as at Pearl Academy, cultural meaning is integrated with environmental work rather than applied after it.

The window-to-wall ratio is held to approximately 30 per cent. High-performance glass, insulated opaque surfaces and external shading reduce the peak envelope heat gain to about 0.6 watts per square foot, against a conventional benchmark of at least 4.5 watts per square foot cited in the project studies.

Only after these reductions does the mechanical system enter the argument.

Radiant cooling uses the concrete slab as part of the thermal infrastructure, absorbing and dissipating heat across a large surface area. Because orientation, morphology and envelope have already limited the load, the system can operate at substantially greater efficiency. The campus records an Energy Performance Index of 46.76 kWh per square metre per year, a 52 per cent reduction against the cited GRIHA benchmark of 90.

The project is significant precisely because its performance cannot be attributed to one conspicuous device. The gains accumulate through a chain of interdependent decisions: rotation reduces exposure; controlled depth improves daylight; shading excludes radiation; a lower glazing ratio strengthens the envelope; reduced loads enable efficient radiant cooling.

Architecture and engineering are not separate narratives. One prepares the conditions in which the other can perform with restraint.

The Section Before the Thermostat

Taken together, the three projects resist the tendency to treat passive design strategies in architecture as a catalogue of transferable features.

A courtyard in Jaipur is not equivalent to a courtyard in Hyderabad. In the desert, enclosure, shade, earth and evaporation work against extreme solar heat and exploit the fall in night-time temperatures. In Hyderabad, a more open and fragmented court supports changing combinations of shade, evaporation and air movement. In Nagpur, the problem is addressed through calibrated orientation, floor-plate depth and envelope performance, preparing the building for a highly efficient active system.

The same strategy may even become counterproductive when detached from its climate. Evaporative cooling loses effectiveness when humidity rises. Extensive thermal mass can retain unwanted heat if night-time purging is unavailable. Natural ventilation cannot guarantee comfort where outdoor air quality is poor or internal loads are high. Daylight without solar control introduces glare and cooling demand. Glass that expands visual connection may simultaneously weaken thermal performance.

Climatic intelligence therefore begins with diagnosis, not vocabulary.

It asks when a space is occupied, which surfaces receive radiation, how temperature changes over twenty-four hours, when humidity inhibits evaporation, where air enters and how it leaves. It examines the body as carefully as the building, recognising that comfort is affected not only by air temperature but by radiant temperature, air speed, humidity, clothing, activity and expectation.

This produces a more graduated architecture. Some spaces require tightly controlled internal conditions. Others can remain naturally ventilated. Many can occupy the generous territory between the two: shaded courts, verandahs, terraces, undercrofts, atria and transitional rooms whose environmental thresholds vary with season and use.

Such spaces have importance beyond energy. They allow institutions to be sociable without making every encounter occur inside a sealed room. They restore movement through light, air and landscape to the experience of large campuses. They make climate perceptible without leaving occupants defenceless before it.

Cooling as the Last, Not the First, Decision

The phrase “before mechanical cooling” does not describe an architecture without technology. It describes an order of thought.

First, reduce direct solar exposure through orientation and shade. Then determine how much enclosure is truly necessary. Use section to create self-shading, pressure difference and thermal depth. Place programme according to its tolerance for environmental variation. Employ landscape, water and vegetation where their climatic effects can be measured. Design the envelope to admit useful light while excluding unwanted heat. Only then calculate the residual demand to be met mechanically.

This sequence has implications for architectural practice. Environmental analysis must begin while the plan and section remain open to change, not after the appearance of the building has been settled. Engineers, landscape architects and façade specialists must participate before climatic problems harden into loads. Performance modelling becomes a design instrument rather than a compliance exercise.

The lesson of Pearl Academy, Wipro and Infosys is not that one tradition, technology or formal language contains the answer. It is that architecture acquires authority when it responds precisely to the conditions in which it stands.

In Jaipur, comfort is excavated from the earth and held behind a porous veil. In Hyderabad, it is cultivated across a landscape of shade, water and moving air. In Nagpur, it is calculated through the angle of a plan, the depth of a floor plate and the disciplined exclusion of solar heat.

Mechanical cooling remains present, sometimes indispensably so. But it is no longer asked to rescue an indifferent building.

It completes the work that architecture has already begun.
