Designing with the Monsoon: Water as the First Layer of the Plan

Through Port Blair Smart City, Uttorayon Township in Siliguri, and Dakshana Valley School near Pune, this article examines how coastlines, contours, streams, aquifers, reservoirs, and public space can shape the plan from the outset

Every monsoon reveals the assumptions embedded in a plan. Water follows gravity, gathers in depressions, crosses property lines, and returns to channels that may have been narrowed, covered, or forgotten. When development interrupts these movements, even sophisticated infrastructure can become overwhelmed. When the plan begins by reading them, rainfall can support recharge, biodiversity, thermal comfort, and public life.

This is the premise of designing with the monsoon. Water is understood as a spatial system before it becomes a drainage calculation. The first drawings are therefore not only plots, roads, and building footprints. They are contours, catchments, streams, shorelines, low points, soil conditions, vegetation, and routes through which water already moves.

Within the growing discourse on water sensitive urban design in India, this shift is essential. The term describes an integrated approach to the urban water cycle, connecting stormwater, groundwater, wastewater, ecology, landscape, and human use. Its value lies in moving water management upstream, into the decisions that determine urban form.

Why water must come before the plan

Conventional planning often gives the fixed elements priority. Roads establish levels, plots establish boundaries, and buildings establish footprints. Stormwater infrastructure is then expected to remove the water that these decisions displace. This sequence turns rainfall into a problem of disposal.

Water-sensitive planning reverses the order. It identifies where water arrives, how quickly it moves, where it can be slowed, and where it can safely collect or infiltrate. Roads, landscapes, and buildings are arranged in response. Drainage then becomes part of a larger network rather than an isolated engineering layer.

Work with gravity

Contours contain the first logic of a site. Following them can reduce cut and fill, protect natural drainage, and allow surface systems to operate with less mechanical intervention. Even subtle gradients can determine whether water is distributed gradually or concentrated into damaging flows.

Make space for variability

The monsoon is seasonal and episodic. A space may need to hold water during intense rain, remain damp during a transition period, and function as a usable landscape when dry. Courts, planted channels, ponds, wetlands, and waterfront edges can therefore perform more than one role across the year.

Connect water with ecology and public life

A drainage reserve can also be a habitat corridor. A reservoir can support biodiversity and improve the microclimate. A restored waterfront can make the relationship between the city and its water visible. The strongest systems combine hydraulic performance with everyday value.

India’s Manual on Storm Water Drainage Systems frames urban stormwater management through planning, hydrology, conveyance, detention, recharge, operation, and maintenance. The architectural opportunity is to translate these requirements into legible, inhabitable urban form.

Reading the monsoon across scales

Water sensitive urban design in India cannot follow one standard diagram. Coastal cities, Himalayan foothills, inland valleys, and dense metropolitan areas encounter different rainfall patterns, soils, slopes, and receiving water bodies. The first task is to understand the scale and character of the watershed in question.

At Port Blair, the operative edge is coastal. The plan must negotiate rainfall, outfalls, changing shorelines, marine ecology, and public access to the Andaman Sea. At Uttorayon, the issue is the movement of very high rainfall across a gently sloping township. At Dakshana Valley School, natural channels, seasonal water bodies, and reservoirs organise a 109-acre campus within a larger valley landscape.

Together, the projects show that water-sensitive design is neither a singular technology nor a catalogue of landscape products. It is a way of establishing priorities. The land is read before it is subdivided, and water is retained as an active agent in the plan.

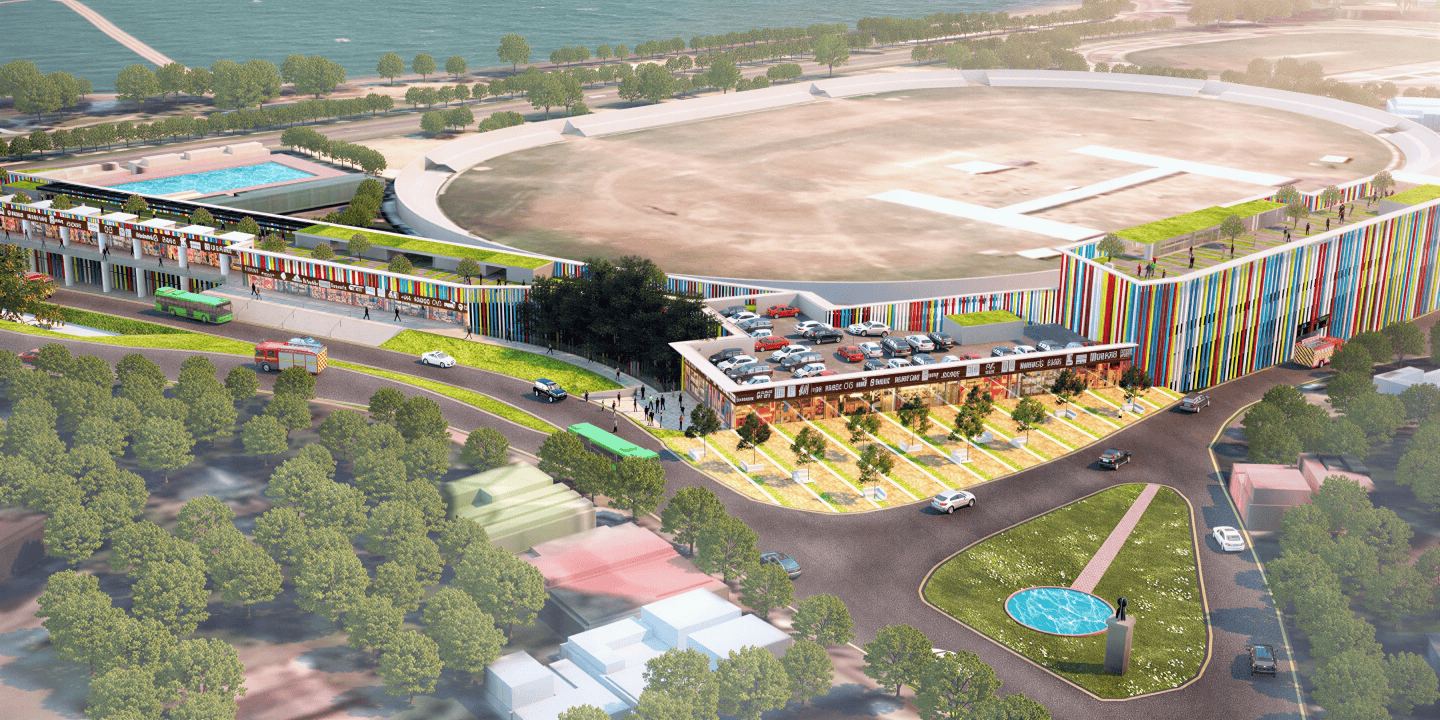

Port Blair Smart City: designing at the meeting of land and sea

Port Blair’s relationship with water is immediate and civic. The Smart City proposal addresses a sequence of coastal and urban public spaces, including the Marine Esplanade, Corbyn’s Cove Trail, Andaman Sea lookouts, Gandhi Park, and key traffic junctions. The design material presents these as parts of a wider public-realm and tourism strategy rather than isolated beautification projects.

The Marine Esplanade is conceived as a 2.5-kilometre coastal stretch between the Rajiv Gandhi Water Sports Complex and the Tiranga Memorial. Its programme includes walking and jogging routes, seating, shade, landscape, beach access, fountains, art, public amenities, and commercial uses. Along Corbyn’s Cove Road, lighter pause points and lookouts frame views while responding to rocky edges and the coastal character.

Treat the waterfront as an ecological threshold

A waterfront is neither stable land nor open water. It is a threshold affected by tides, waves, erosion, drainage, and seasonal use. The Port Blair proposal recognises the shoreline as a continuous system and seeks to conserve marine ecology while improving access and supporting ecotourism.

This changes how public space is conceived. A promenade cannot operate only as a paved line at the water’s edge. Its sections, planting, edge conditions, outfalls, and connections to inland open spaces must account for the movement of water in both directions. The proposal’s references to changing coastline conditions, wave-breaking edges, rocky seabeds, and nallah revitalisation indicate this broader field of design.

At Gandhi Park, the existing water body is incorporated into a renewed city forest. The scheme identifies inlet points for lake desilting, aeration fountains, planted areas, farming terraces, promenades, and shaded places to sit. Maintenance processes that are usually hidden, such as desilting and aeration, are brought into the spatial structure of the park.

Their wider lesson is nevertheless important: in a coastal city, water-sensitive planning must join stormwater management with shoreline ecology, mobility, heritage, tourism, and public access. The coast becomes a connected civic landscape rather than a sequence of leftover edges.

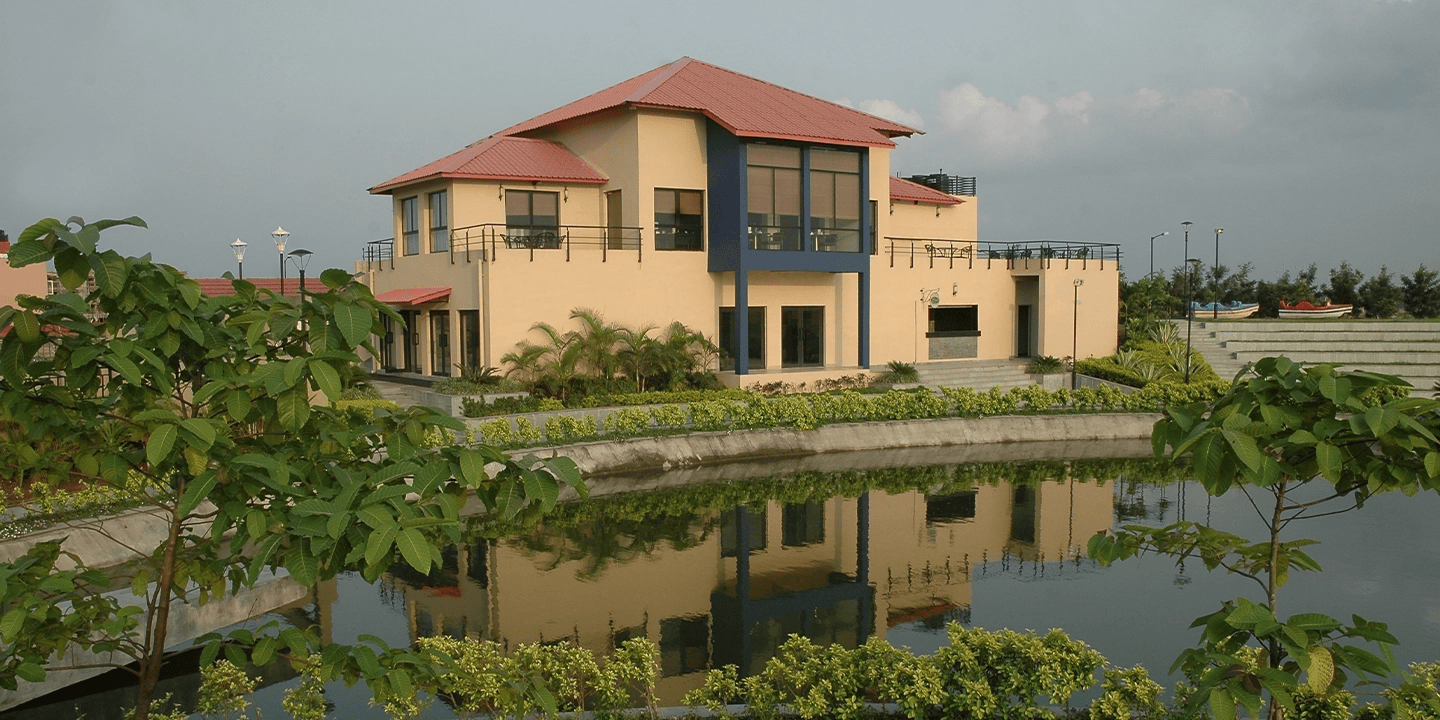

Uttorayon Township: letting topography carry the infrastructure

Uttorayon Township is located at the Himalayan foothills in Siliguri, a wet climate where annual rainfall is documented at approximately three metres. Across its 393 acres, the masterplan uses this climatic reality as an organising constraint.

The primary decision was to respect the natural topography and develop an integrated surface drainage system. Road gradients were calculated to work with existing natural streams, reducing the need for an extensive underground piping network. Water remains close to the surface, where its movement can be understood, inspected, and maintained.

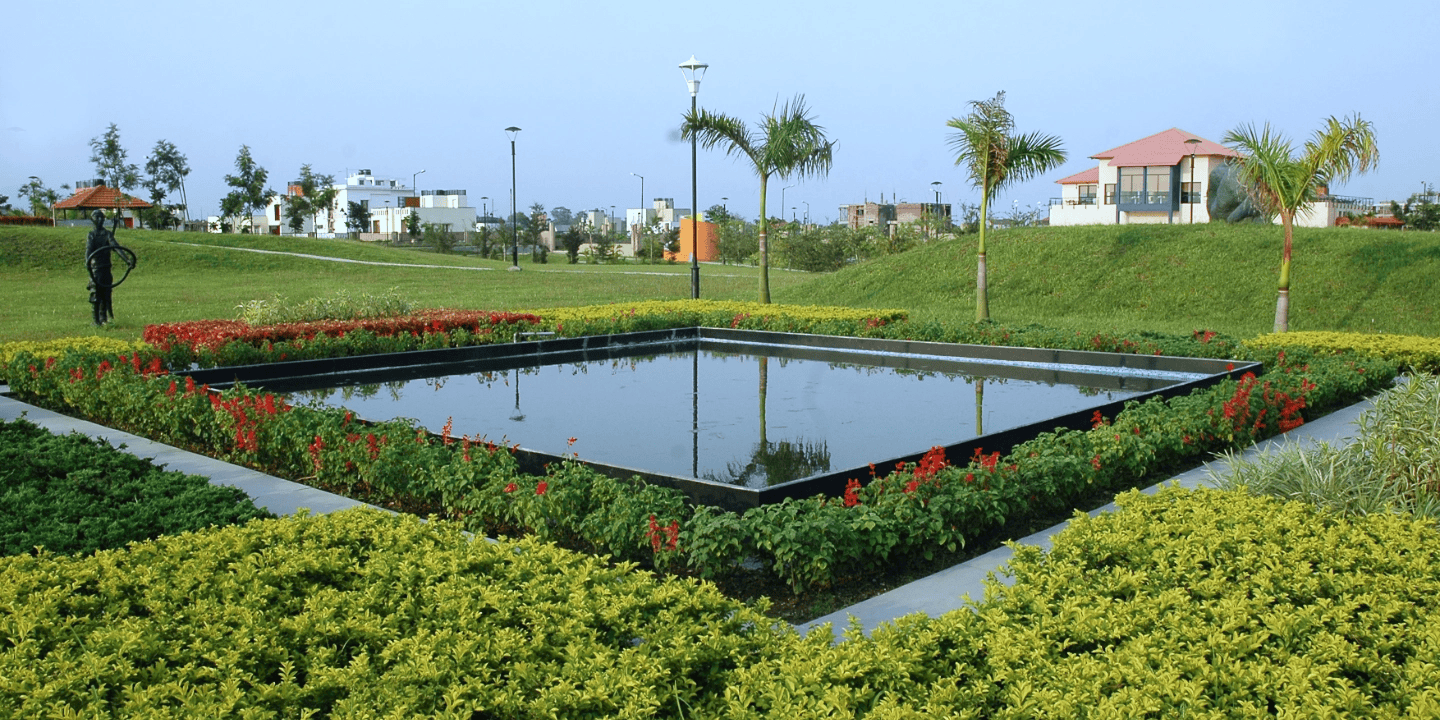

Shallow drains, distributed landscapes

The surface stormwater drains are documented as no more than 12.5 centimetres deep. A network of green strips links communal greens, microgreens, and aquifers, enabling rainwater to percolate into the ground as it moves through the township. This distributed system reduces dependence on a few large conduits and embeds drainage within the inhabited landscape.

The approach also shaped the economics of the development. By avoiding expensive underground networks, capital could be directed towards infrastructure for neighbourhood clusters of 20 plots arranged around communal greens.

Water infrastructure is connected to growth over time. Modular sewage trunks flank neighbourhood clusters and can receive additional connections as development expands. Reed beds provide a natural alternative to fully mechanised sewage treatment. Stormwater, wastewater, landscape, and phasing are therefore considered as related systems rather than independent packages.

Uttorayon demonstrates the practical value of visible infrastructure. Shallow surface systems are easier to inspect than buried networks, but they require protected flow paths, appropriate planting, routine clearing, and shared understanding among residents and maintenance teams. Their resilience depends as much on stewardship as on initial design.

The township also shows how water sensitive urban design in India can support social infrastructure. Communal greens perform environmental work while giving neighbourhood clusters a shared centre. Resource efficiency and community formation arise from the same spatial decision.

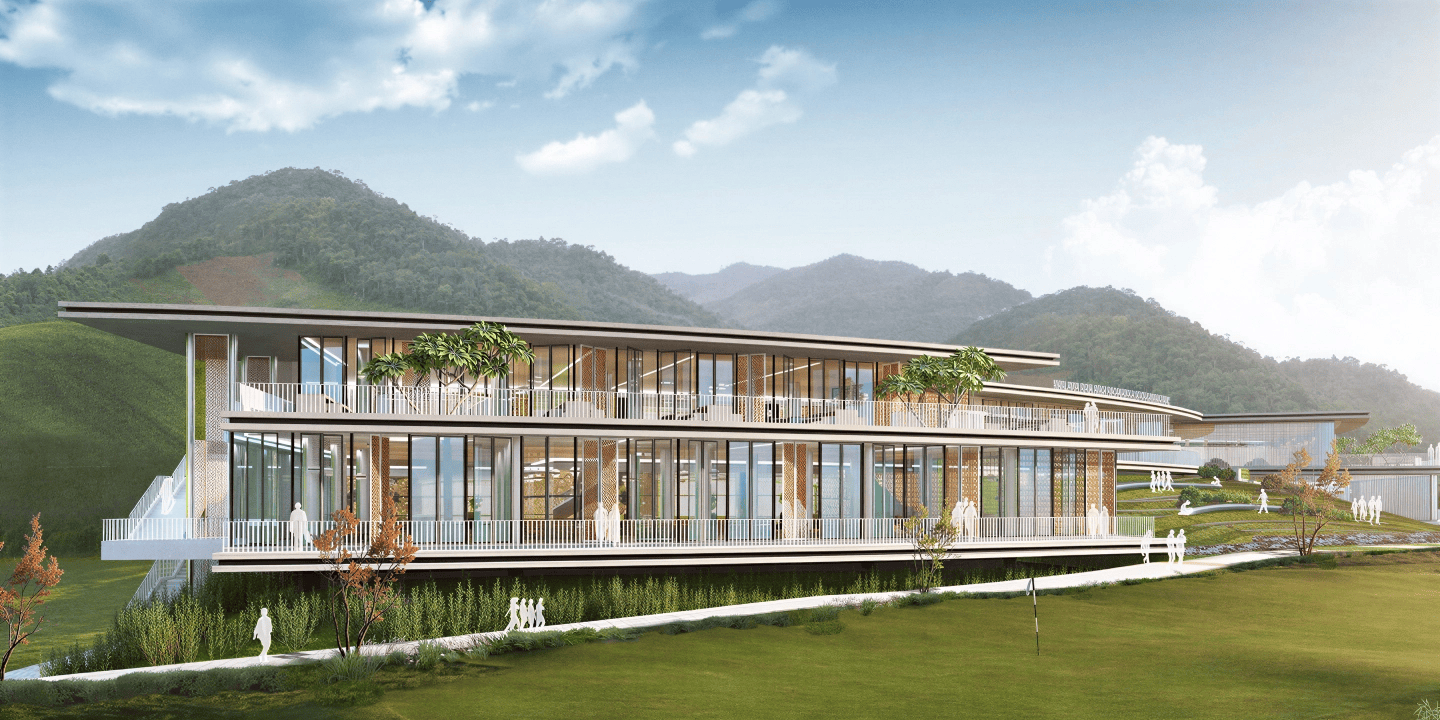

Dakshana Valley School: planning as watershed stewardship

Dakshana Valley School near Pune extends the argument from urban infrastructure to an educational landscape. The 109-acre residential campus is situated in a valley bordered by hills and agricultural land. Its terrain falls from north to south and contains existing lakes, seasonal water bodies, natural drainage channels, and established vegetation.

The masterplan follows contours and divides the site into buildable and non-buildable tracts. Buildings are placed to minimise cut and fill, while service tunnels follow pathways and respect existing terrain. The natural drainage routes are left unobstructed so that rainwater can continue towards aquifers and reservoirs.

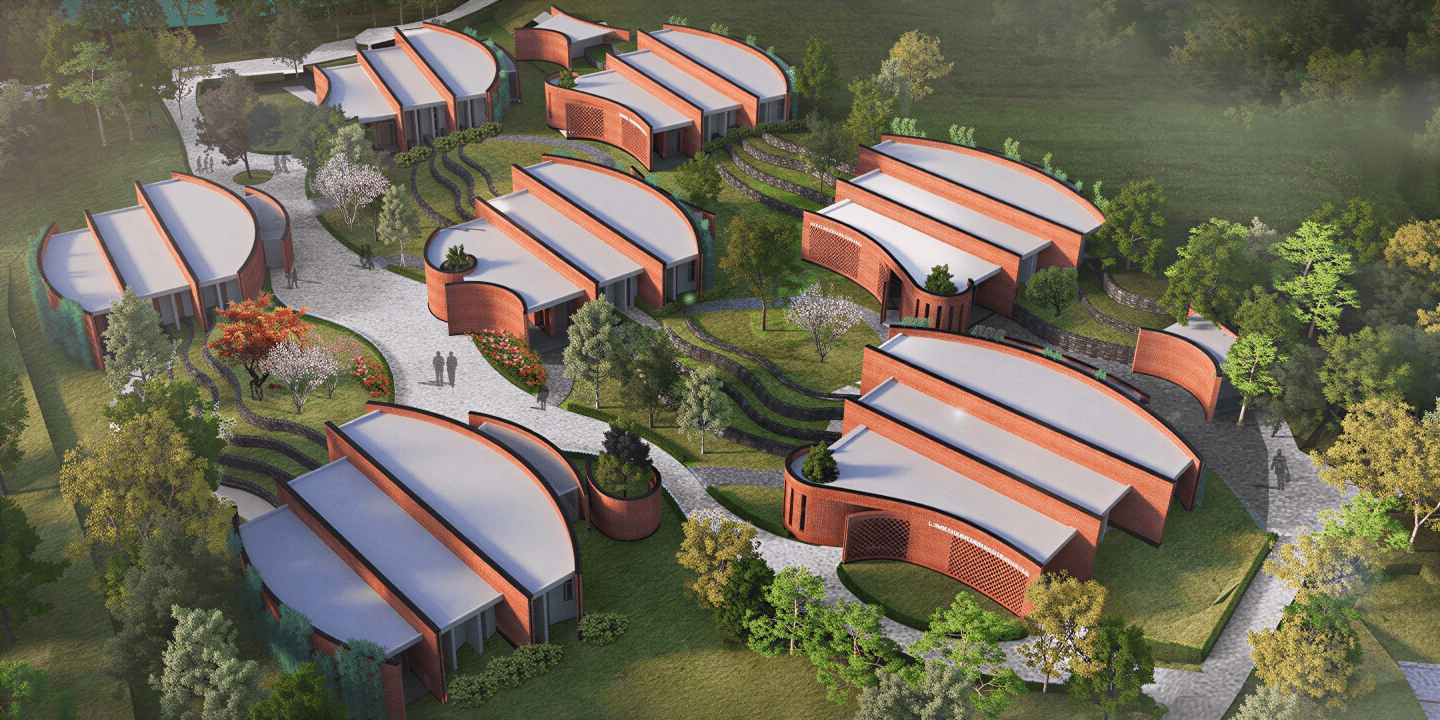

Keep catchments intact

The supplied design strategy estimates annual rainfall at 0.781 metres across a site area of 421,571 square metres. Using the project’s stated runoff assumptions, it identifies a potential annual rainwater collection of 164,623 cubic metres. The calculation informed a proposal for a 7.5-acre lake, two metres deep, to support the campus’s net-zero water target.

Storage is not squeezed into residual space after the campus is planned. Catchments, seasonal ponds, reservoirs, and recharge areas determine where construction can occur.

Riparian planting is proposed around water bodies at different elevations to reduce erosion and support biodiversity. Existing trees are retained and used to shape building profiles and outdoor learning spaces. Lakes provide views, cooler air, and a focus for campus life while remaining part of the site’s hydrological system.

The school’s Academic Street begins at the site’s highest central point and descends towards a lake. This makes the movement through the campus legible in relation to the valley. Water is simultaneously infrastructure, orientation, habitat, microclimate, and pedagogy.

For a residential school, this visibility has educational value. Students encounter reservoirs, farms, riparian landscapes, and seasonal change as parts of daily life. Environmental performance becomes tangible, allowing the campus itself to participate in learning.

A framework for water-sensitive planning

Across the three projects, water enters the plan through different conditions but produces a shared sequence of design decisions.

1. Map water before fixing development. Record contours, catchments, channels, shorelines, soil conditions, vegetation, low points, and flows arriving from beyond the site.
2. Protect the primary routes. Keep natural channels and drainage paths open. Where intervention is unavoidable, maintain hydraulic continuity and ecological function.
3. Slow, spread, store, and recharge. Use a connected network of shallow conveyance, planted landscapes, ponds, wetlands, reservoirs, and permeable areas suited to the site.
4. Design for seasonal change. Give water spaces a useful dry-season role without compromising the volume or access needed during heavy rain.
5. Connect systems. Coordinate stormwater, wastewater, groundwater, landscape, mobility, and public space from the beginning.
6. Plan for maintenance. Provide accessible inlets, silt traps, edges, planting regimes, and responsibilities. A system that cannot be inspected will become vulnerable over time.
7. Measure performance. Distinguish calculated potential, design targets, completed infrastructure, and post-occupancy results.

This framework repositions water from a technical constraint to a form-giving resource. It can influence street gradients, plot structure, development density, building placement, open-space networks, and the identity of a place.

The monsoon will always exceed neat disciplinary boundaries. It connects an upstream decision to a downstream consequence, a road level to a flooded courtyard, and a blocked channel to a damaged habitat. Designing with it therefore requires architects, planners, landscape architects, engineers, ecologists, authorities, and communities to work from a shared reading of the watershed.

When water is the first layer of the plan, resilience is built into the geometry of development. The result can use less hard infrastructure, preserve ecological processes, make maintenance more visible, and give public life a stronger relationship with the landscapes that sustain it.
